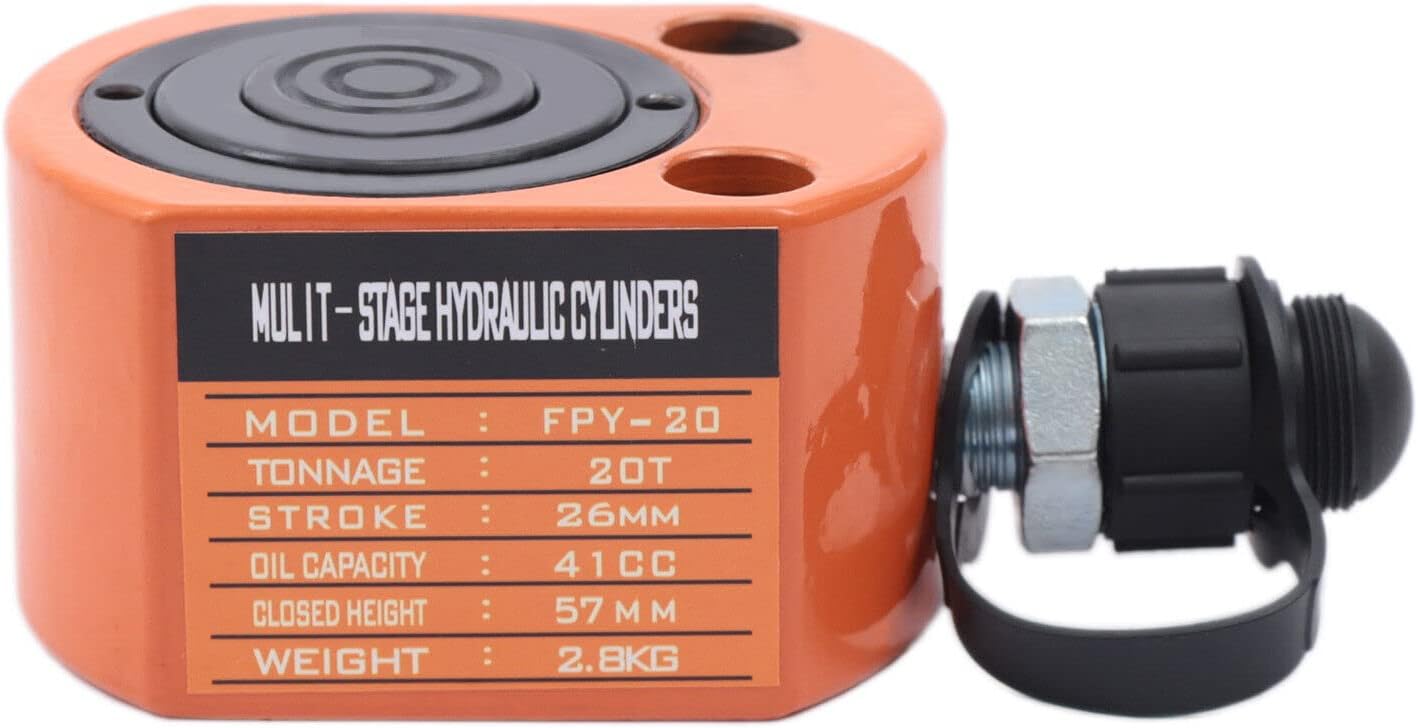

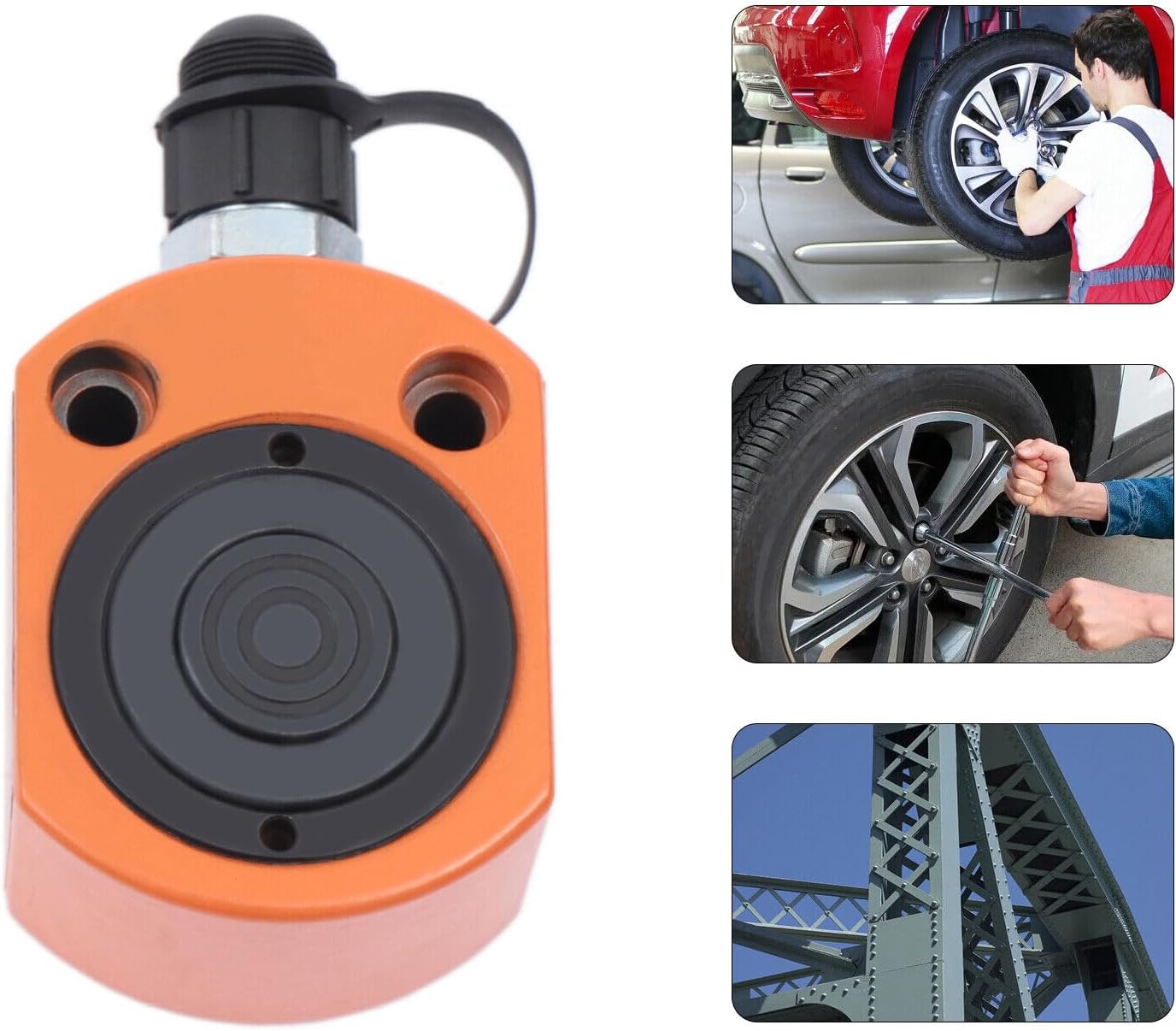

20 Tons Stroke Hydraulic Cylinder Jack, Low Profile Porta Power Ram Single-Acting Mini Jack Ram Multi Stage 1" Stroke Lifting Cylinder, Portable for Machinery, Bridge, Construction

SpecificationModel: FRY-20Color: OrangeProduct Type: Hydraulic JackMain Material: 45 SteelRange of Application: Lifting EquipmentOil Capacity: 41ccSection Quantity: 2Connector Model: ZG-3/8Use Angle: 360 DegreesFirst Section Tonnage: 20T/44092lbsSecond Section Tonnage7T/15432lbsTotal Tonnage: 20T/44092lbsFirst Section Stroke: 1cm/0.39inchSecond Section Stroke: 1.6cm/0.63inchFirst Section Piston Diameter: 5cm/1.97inchSecond Section Piston Diameter: 3.1cm/1.22inchTotal Stroke: 2.6cm/1.02inchClosed Height: 5.7cm/2.2inchProduct Size: 10*7.6*5.7cm/3.9*3*2.2inchPackage Size: 18.5*10*6.5cm/7.28*3.94*2.56inchGross Weight: 3kg/6.6lbsNet Weight: 2.8kg/6.17lbsPackage Included1* Hydraulic Cylinder JackNotes1.For proper operation, all cylinders need to be connected to a solid lifting surface. Using thin cylinders on sandy, muddy or loose surfaces can cause cylinder damage.2.This jack needs to be used with a pump. The pump is not included in the package.3.This multi-section jack's pistons will not retract automatically after use, so you need to retract them manually.4.It is normal for hydraulic products to have slight oil leaks due to the long-term transportation process. When not using the hydraulic pump, please tighten the sealing plug and seal the joint with a small bag and rubber band to avoid oil leakage.5.The bottom should be flat and tough when using hydraulic jacks. For the safety of use, it is recommended to use oil-free wood, which can expand the pressure-bearing surface. In addition, to avoid sliding, you can not use iron plates to lift things. It is not suitable for automobiles.

• 【Great Durability】The main material of this jack is hard and strong 45 steel. It can withstand great weight without deformation or twisting. It has a long service life.
• 【Strong Lifting Force】This jack has a strong lifting force of 44092 pounds, so it can lift a lot of heavy objects. The strong lifting force can meet your most lifting needs well.
• 【Multi-section Design】Multi-section jacks can be used in narrower and lower spaces. In addition to the height of the jack body, the two pistons also increase the stroke so that the jack can lift higher and be more convenient to use.
• 【Time and Energy Saving】It is difficult to lift heavy objects manually. But with this jack, you can easily and quickly lift heavy objects. It is time and energy-saving.
• 【Wide Application】This hydraulic jack is often used in industries such as electric power, chemical industry, steel, bridges and machinery.
