Cross Sliding Table Linear Motion Rail Slide 200mm Linear Stage Actuator Nema23 Stepper Motor Ball Screw Slide Block Bearing Table

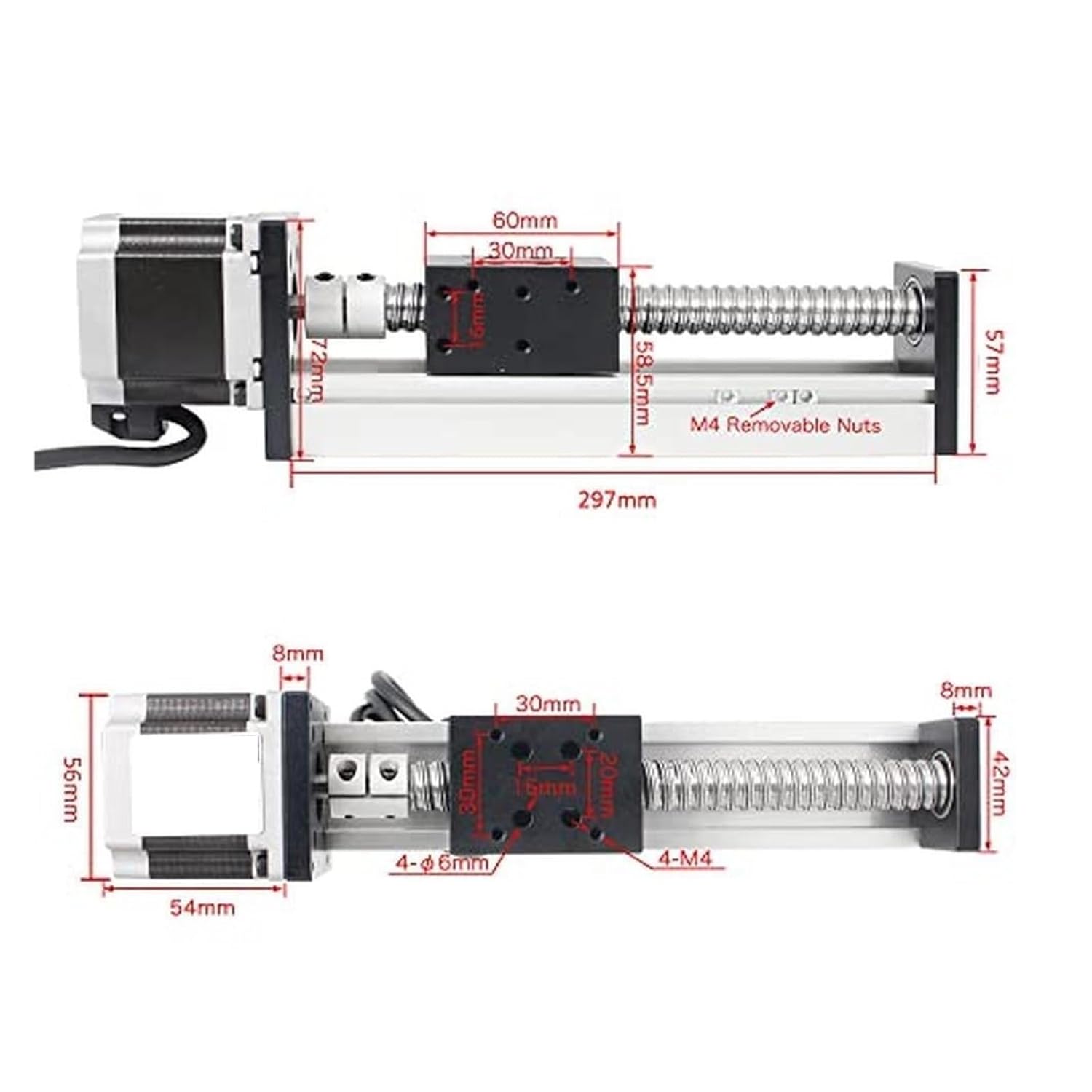

1. Linear rail slide design, high precision, more stable operation, sliding nut sideways, limit switch can be installed at any position.2. The slider is made of aluminum alloy and oxidized, beautiful and elegant.3. It is an important hardware device for industrial machinery, which can accurately control the accuracy and speed of the moving parts of mechanical equipment.Specifications:Product model: CBX1605Effective stroke length: 200mmScrew accuracy: C7Screw pitch: 5mmFlange nut screw accuracy up to: 0.03mmMotor length: 56mmMotor flange size: 57mmHolding torque: 1.2N.mFeatures: Side M4 sliding nut design, limit switch can be installed at any position. Oxidation treatment, beautiful and generous.Applicable to lathes, machine tools, machining, mechanical equipment, automation devices and other industrial automation fields.Packing list:1pcs Ball Screw Slide Block Bearing Table

• 1. The ball screw design is adopted, the operation noise is low, and it will not interfere with the work of others.
• 2. The linear axis is chrome-plated and equipped with linear bearings, which makes the operation more stable and efficient.
• 3. It is used for production machinery, testing equipment, precision measurement, and fine-tuning of displacement, positioning and movement of mechanical equipment.
• 1. The guide rail is made of bearing steel, which has high wear resistance and low noise
• 2. Adding a stable bearing at the motor end can better maintain accuracy and improve operating stability
• 3. The bottom M4 movable nut is easy to install, and the corresponding nut can be placed on the side according to requirements
